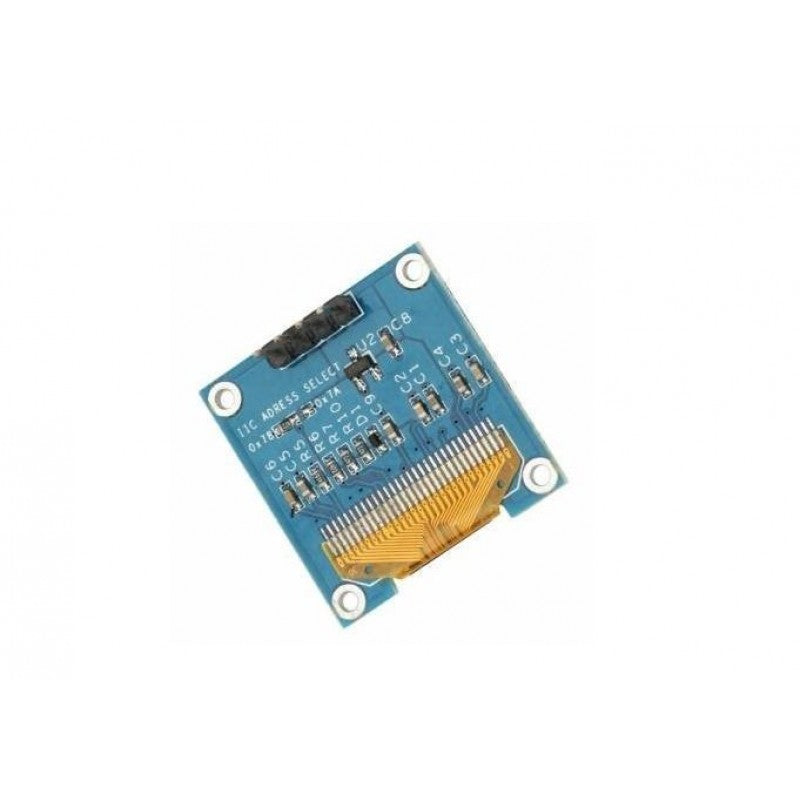

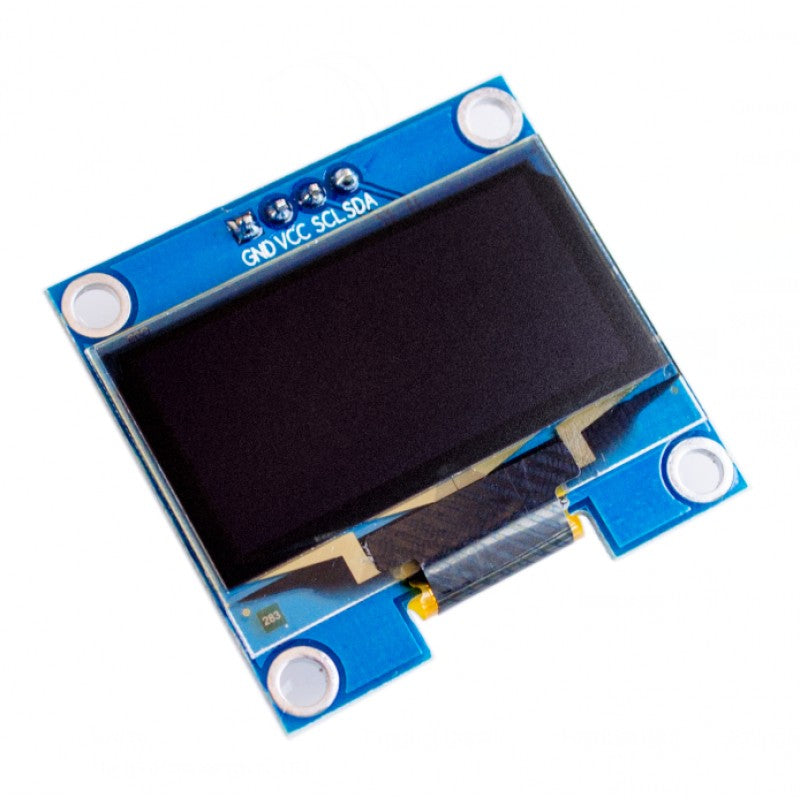

0.96 Inch I2C 128x64 OLED Display Module 4 Pin White

0.96 Inch I2C 128x64 OLED Display Module 4 Pin White

Rs. 200.00
Rs. 200.00
Sale Sold out

This compact 0.96 inch OLED display module features a crisp 128x64 resolution, delivering sharp monochrome white visuals with an ultra-wide viewing angle exceeding 160 degrees. Utilizing self-illuminating organic light-emitting diode technology, it operates efficiently without requiring a backlight, resulting in ultra-low power consumption during active use.

Equipped with an SSD1306 driver IC and standard 4-pin I2C communication, the module requires only two I/O pins for seamless integration with microcontrollers. It supports a wide input voltage range from 3.3V to 6V, making it fully compatible with 3.3V and 5V logic systems including Arduino platforms.

Key Features

Display Type OLED
Screen Size 0.96 Inch
Resolution 128 x 64
Display Color White
Driver IC SSD1306
Interface I2C / IIC (4 Pin)
Input Voltage 3.3V - 6V
Logic Level 3.3V / 5V
Viewing Angle >160°
Power Consumption 0.06W - 0.08W
Operating Temperature -30°C to 70°C
Country of Origin China
Product Weight 10 g

Highlights

  • Works without the need for a backlight.
  • 128x64 high resolution with an ultra-wide viewing angle.
  • Low power consumption: 0.08W when the screen is fully lit and 0.06W when displaying characters.
  • Compatible with multiple controlling chips, including Arduino.
  • Supports a wide range of voltage input.

Compatibility

Compatible with standard microcontrollers and development boards, including Arduino, ESP8266, ESP32, and Raspberry Pi supporting 3.3V or 5V I2C logic levels.

How to use

Connect the VCC and GND pins to your power source (3.3V to 6V) and ground. Connect the SCL (clock) and SDA (data) pins to your microcontroller's designated I2C pins, and control the screen using standard SSD1306 display libraries.

Downloads

Frequently asked questions

What interface does this OLED display module use?

This module uses a 4-pin I2C/IIC serial communication interface, requiring only two microcontroller I/O ports for data transfer.

What driver chip controls the display?

The display is powered by the SSD1306 OLED driver IC.

What are the compatible operating voltage levels?

The module accepts an input voltage between 3.3V and 6V and supports both 3.3V and 5V compatible I/O logic levels.

Does this OLED screen require a separate backlight?

No, OLED technology is self-emissive and illuminates without the need for an external backlight.
