DIY Smart Elevator Model Kit – Arduino Nano & L298N Motor Driver STEM Project

Build, code, and control your own working mini elevator! This DIY STEM project includes a multi-level laser-cut wooden lift structure, an Arduino Nano microcontroller, and an L298N motor driver module. Perfect for students, hobbyists, and robotics enthusiasts learning hardware control, motor drivers, and basic C/C++ programming.

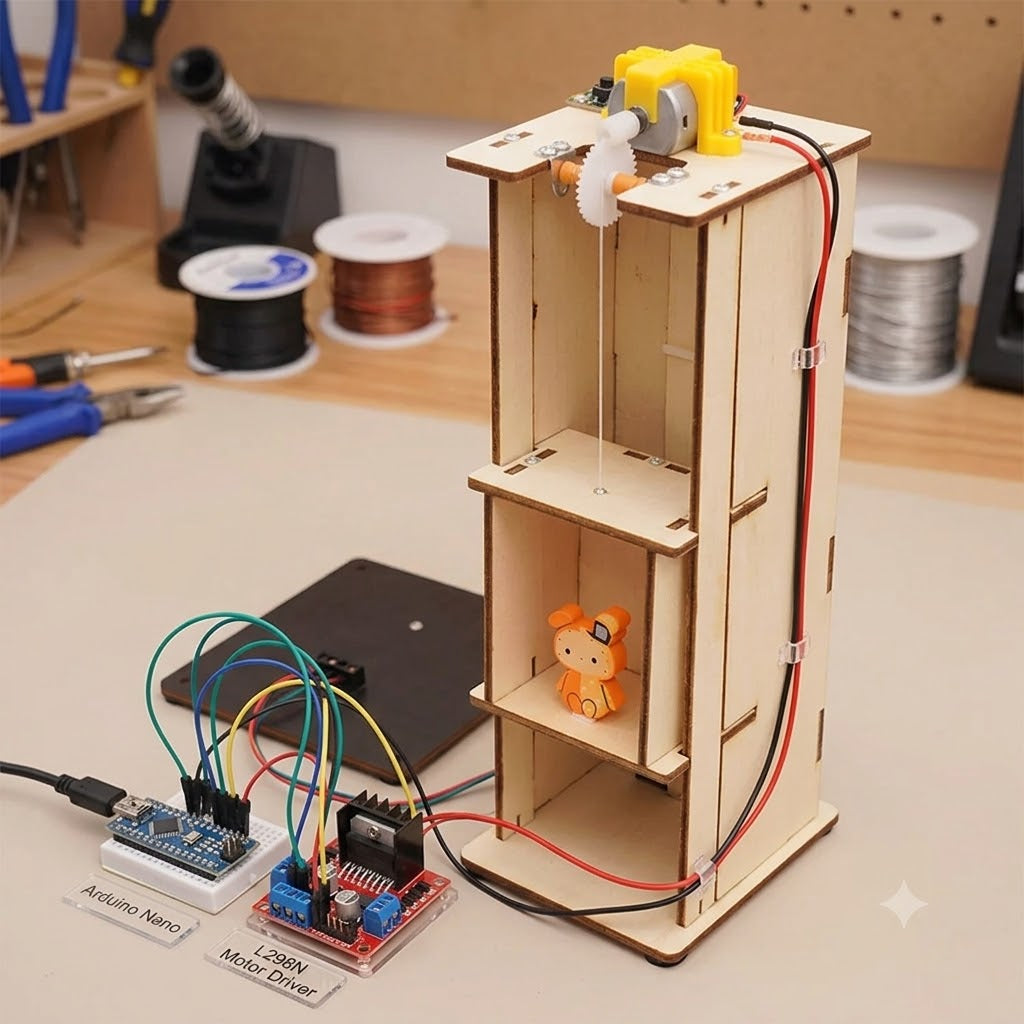

Bring engineering and automation to life with the DIY Smart Elevator STEM Kit! Designed for hands-on learning, this kit combines precision laser-cut wooden architecture with industry-standard electronic components. Assemble the three-level lift structure, connect the Arduino Nano to the L298N motor driver module, and write your own code to raise and lower the elevator cabin smoothly

Key Features

Highlights

• Sturdy Laser-Cut Frame: High-precision plywood panels snap and screw together easily to form a 3-sided enclosed elevator shaft.

• DC Gear Motor Drive: Uses a high-torque top-mounted DC gear motor with a pulley-and-string mechanism to lift the elevator cabin.

• Arduino Nano Powered: Compact micro-controller board allows custom programming for floor stops, directional control, and speed adjustment.

• L298N Dual H-Bridge Driver: Standard motor driver module provides robust power management and reversible motor control.

• Pre-Routed Cable Management: Clearly routed power and control cables keep your workbench neat during assembly.

Materials & care

• Pre-Cut Wooden Parts – For building the elevator frame and structure.
• Electric Motor – Powers the pulley system to lift and lower the platform.
• Pulley – Guides the rope and supports the lifting mechanism.
• Rope/String – Connects the platform to the pulley for controlled movement.
• Platform – Acts as the elevator lift during operation.
• Battery Holder – Supplies power to the motor efficiently.
• Wires – Complete the electrical circuit between components.
• Screws and Nuts – Ensure secure assembly of all parts.
• User Manual: Detailed instructions and scientific explanations included.

How to use

Assemble the wooden frame using the pre-cut pieces, screws, and nuts according to the included manual. Install the motor, pulley, and string to link the platform, then connect the wiring to the battery holder to operate the vertical lift mechanism.

What's included

• .Laser-cut wooden elevator structure kit (Base, shaft walls, cabin, top deck)
• DC Gearhead Motor with mounting bracket & winch pulley
• Arduino Nano Microcontroller Board
• Mini Breadboard for Arduino mounting
• L298N Motor Driver Module
• Set of Dupont Jumper Wires (Male-to-Female / Female-to-Female)
• Motor power cables & wire clips   .Mini character figurine   .Assembly & Wiring Guide
